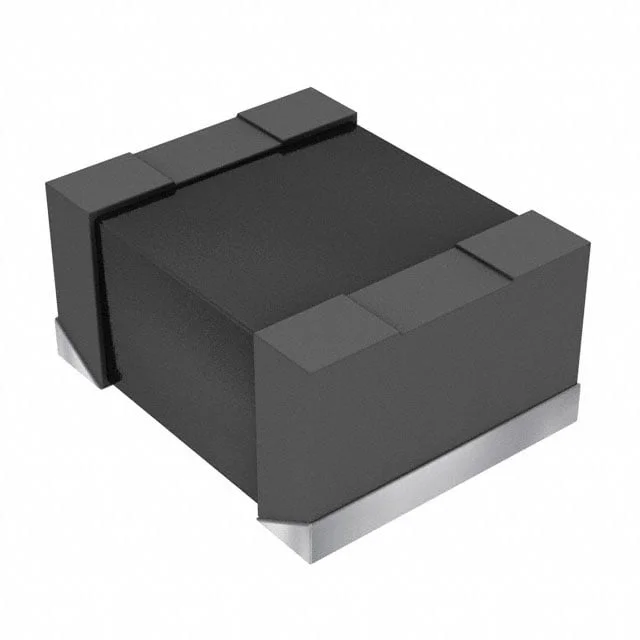

MBPK3225H2R2M
Taiyo Yuden
Description
FIXED IND 2.2UH 2.15A 69 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MBPK3225H2R2M.
MBPK3225H2R2M has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MBPK3225H2R2M is rated for 2.15 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MBPK3225H2R2M lists a DC resistance of 69mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MBPK3225H2R2M uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MBPK3225H2R2M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 2.15 A |
| DC Resistance (DCR) | 69mOhm Max |
| Saturation Current | 1.65A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 2.2UH 2.15A 69 MOHM |
| Series | MCOIL™, MB, H Type |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 (3225 Metric) |
| Height - Seated (Max) | 0.055" (1.40mm) |
