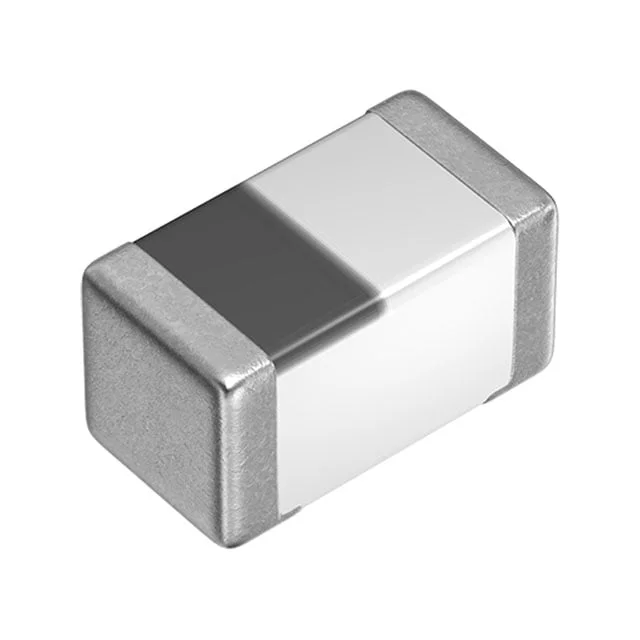

FIXED IND 9.1NH 250MA 900 MOHM
| Inductance | 9.1 nH |
| Tolerance | ±3% |
| Current Rating | 250 mA |
| DC Resistance (DCR) | 900mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.026" L x 0.014" W (0.65mm x 0.35mm) |
| Case / Size | 0201 (0603 Metric) |
| Supplier | TDK |
| Description | FIXED IND 9.1NH 250MA 900 MOHM |
| Series | MHQ-P |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | Ceramic, Non-Magnetic |
| shielding | Unshielded |
| qFactor | 16 @ 500MHz |
| selfResonantFreq | 3.8GHz |
| ratings | AEC-Q200 |
| testFrequency | 500 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0201 (0603 Metric) |
| heightMax | 0.016" (0.40mm) |
| features | - |
