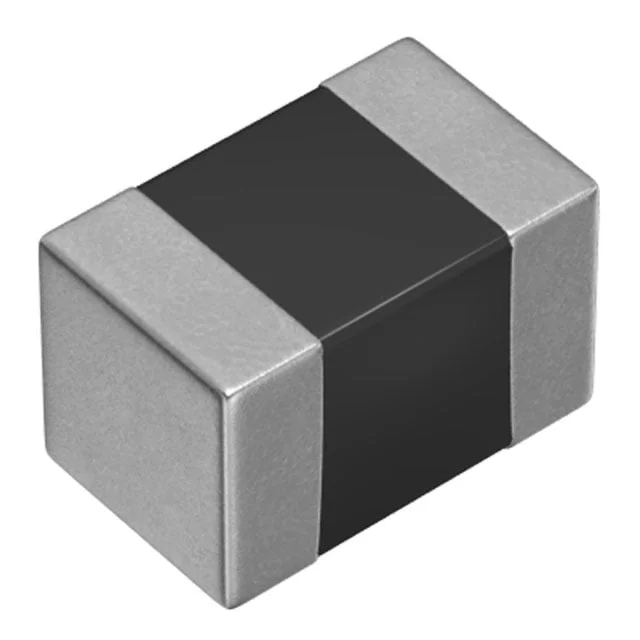

FIXED IND 15UH 5MA 700 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±10% |
| Current Rating | 5 mA |
| DC Resistance (DCR) | 700mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 85°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | TDK |
| Description | FIXED IND 15UH 5MA 700 MOHM SMD |
| Series | MLF |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 30 @ 1MHz |
| selfResonantFreq | 22MHz |
| ratings | AEC-Q200 |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 (2012 Metric) |
| heightMax | 0.057" (1.45mm) |
| features | - |
