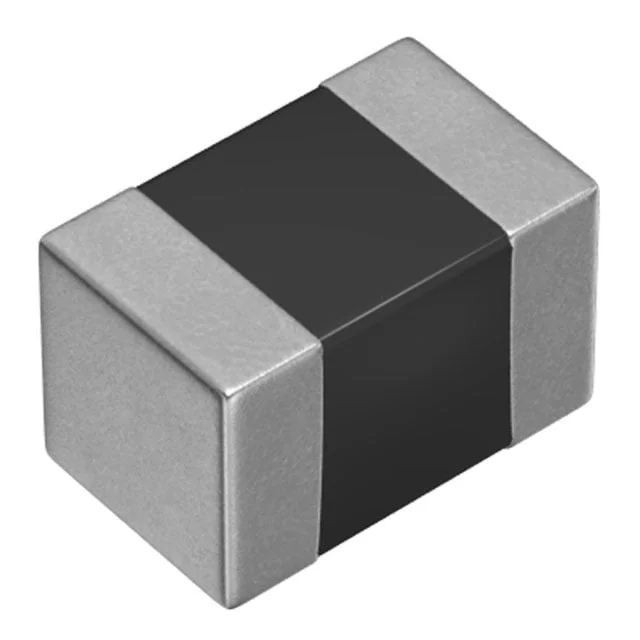

FIXED IND 560NH 150MA 550 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MLF2012DR56JTD25.
MLF2012DR56JTD25 has an inductance value of 560 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MLF2012DR56JTD25 is rated for 150 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MLF2012DR56JTD25 lists a DC resistance of 550mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MLF2012DR56JTD25 uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MLF2012DR56JTD25 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 560 nH |
| Tolerance | ±5% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 550mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | TDK |
| Description | FIXED IND 560NH 150MA 550 MOHM |
| Series | MLF |
| Product Status | Active |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 25 @ 25MHz |
| Self Resonant Frequency | 150MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.057" (1.45mm) |
