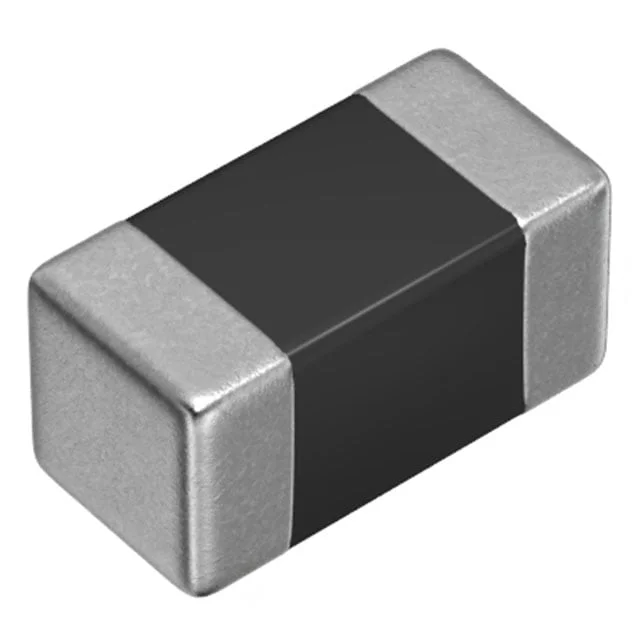

FIXED IND 120NH 450MA 390 MOHM
| Inductance | 120 nH |
| Tolerance | ±5% |
| Current Rating | 450 mA |
| DC Resistance (DCR) | 390mOhm Max |
| saturationCurrent | 380mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Case / Size | 0402 (1005 Metric) |
| Supplier | TDK |
| Description | FIXED IND 120NH 450MA 390 MOHM |
| Series | MLJ |
| productStatus | Active |
| typeConstruction | Multilayer |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 15 @ 25MHz |
| selfResonantFreq | 460MHz |
| ratings | - |
| testFrequency | 25 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0402 |
| heightMax | 0.022" (0.55mm) |
| features | - |
