Description

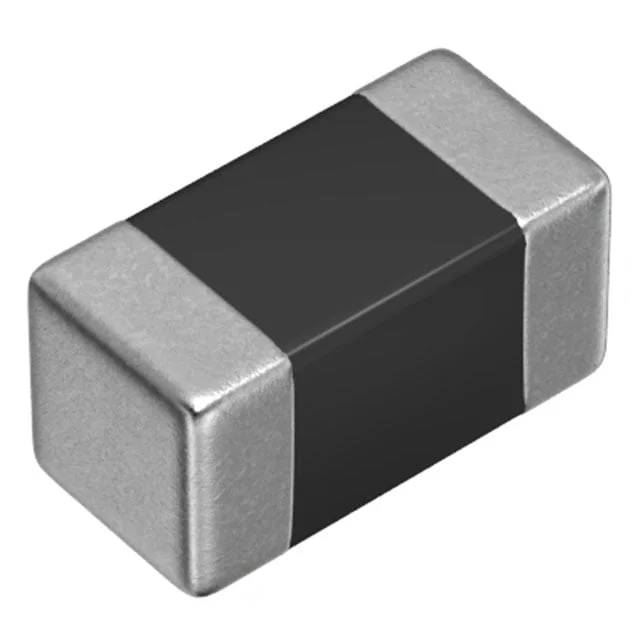

FIXED IND 160NH 400MA 520 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MLJ1005WR16JT000.
MLJ1005WR16JT000 has an inductance value of 160 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MLJ1005WR16JT000 is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MLJ1005WR16JT000 lists a DC resistance of 520mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MLJ1005WR16JT000 uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MLJ1005WR16JT000 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 160 nH |
| Tolerance | ±5% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 520mOhm Max |
| Saturation Current | 350mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | TDK |
| Description | FIXED IND 160NH 400MA 520 MOHM |
| Series | MLJ |
| Product Status | Active |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 15 @ 25MHz |
| Self Resonant Frequency | 330MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.022" (0.55mm) |
