Description

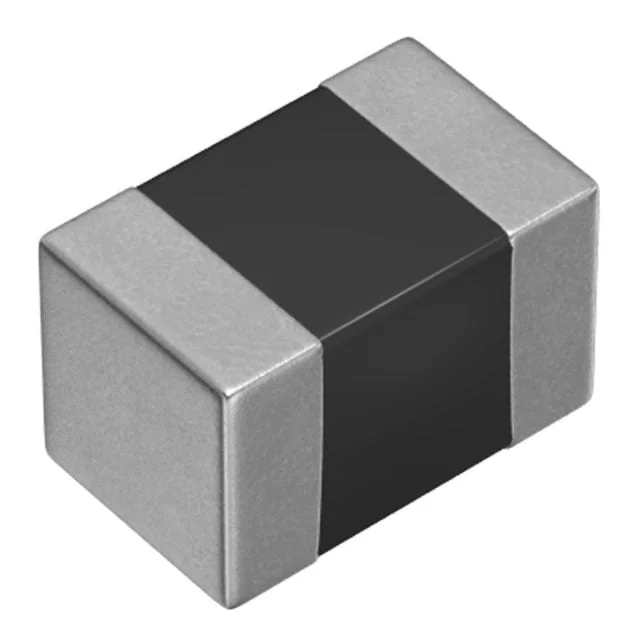

FIXED IND 1UH 900MA 100 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for MLZ2012A1R0MT000.
MLZ2012A1R0MT000 has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
MLZ2012A1R0MT000 is rated for 900 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
MLZ2012A1R0MT000 lists a DC resistance of 100mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
MLZ2012A1R0MT000 uses a package or case of 0805 (2012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from MLZ2012A1R0MT000 to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 100mOhm |
| Saturation Current | 280mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Case / Size | 0805 (2012 Metric) |
| Package / Case | 0805 (2012 Metric) |
| Supplier | TDK |
| Description | FIXED IND 1UH 900MA 100 MOHM SMD |
| Series | MLZ |
| Product Status | Not For New Designs |
| Type / Construction | Multilayer |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 160MHz |
| Inductance Test Frequency | 10 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0805 (2012 Metric) |
| Height - Seated (Max) | 0.041" (1.05mm) |
