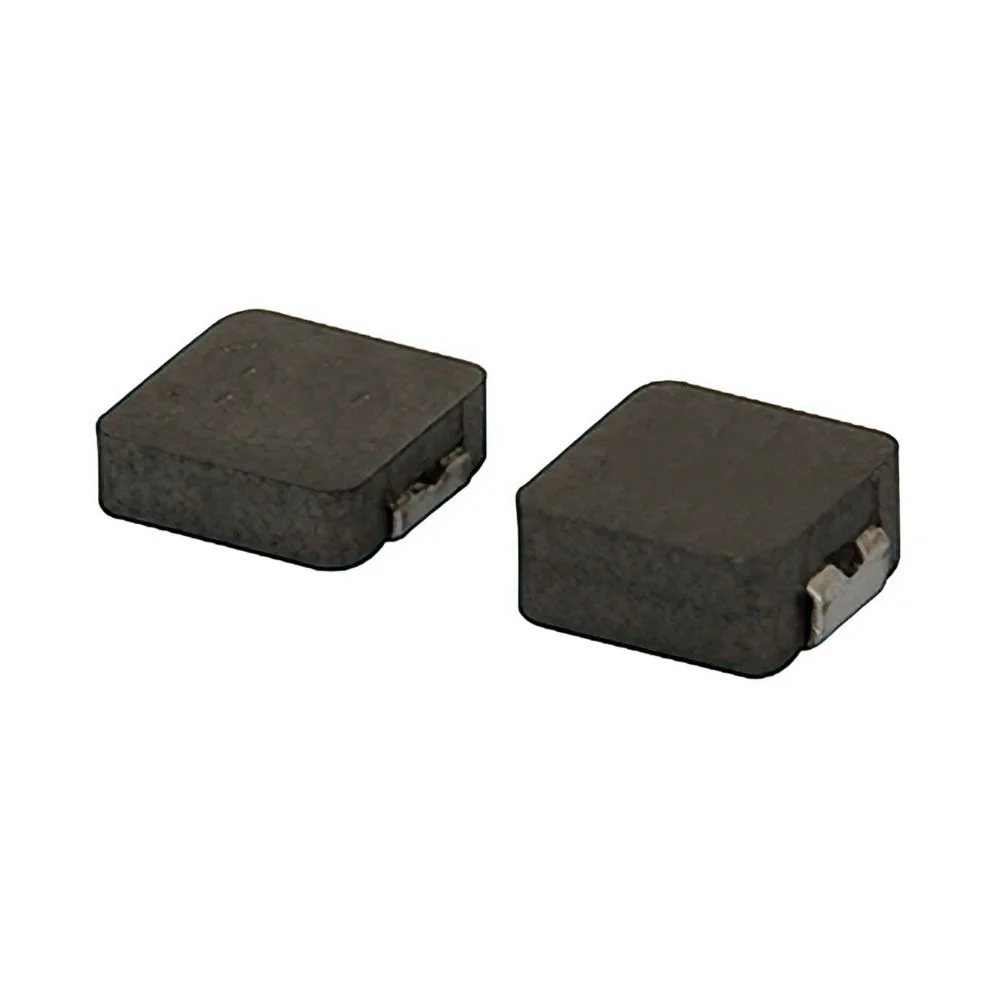

FIXED IND 15UH 1.5A 384 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 384mOhm Max |
| saturationCurrent | 1.8A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.173" L x 0.165" W (4.40mm x 4.20mm) |
| Case / Size | Nonstandard |
| Supplier | Eaton - Electronics Division |
| Description | FIXED IND 15UH 1.5A 384 MOHM SMD |
| Series | MPIV2 |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 13MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
