Description

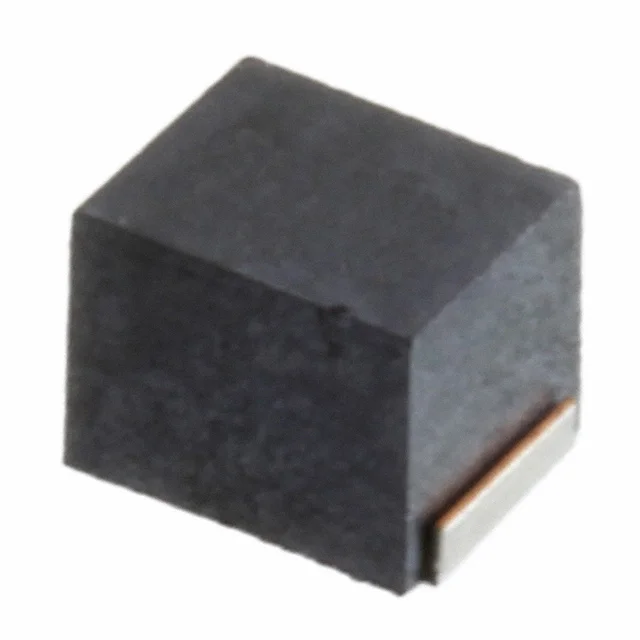

FIXED IND 33UH 95MA 780 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for NLFV32T-330K-EF.
NLFV32T-330K-EF has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
NLFV32T-330K-EF is rated for 95 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
NLFV32T-330K-EF lists a DC resistance of 780mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
NLFV32T-330K-EF uses a package or case of 1210 (3225 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from NLFV32T-330K-EF to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating | 95 mA |
| DC Resistance (DCR) | 780mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Package / Case | 1210 (3225 Metric) |
| Supplier | TDK |
| Description | FIXED IND 33UH 95MA 780 MOHM SMD |
| Series | NLFV |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 2.52 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1210 (3225 Metric) |
| Height - Seated (Max) | 0.094" (2.40mm) |
