Description

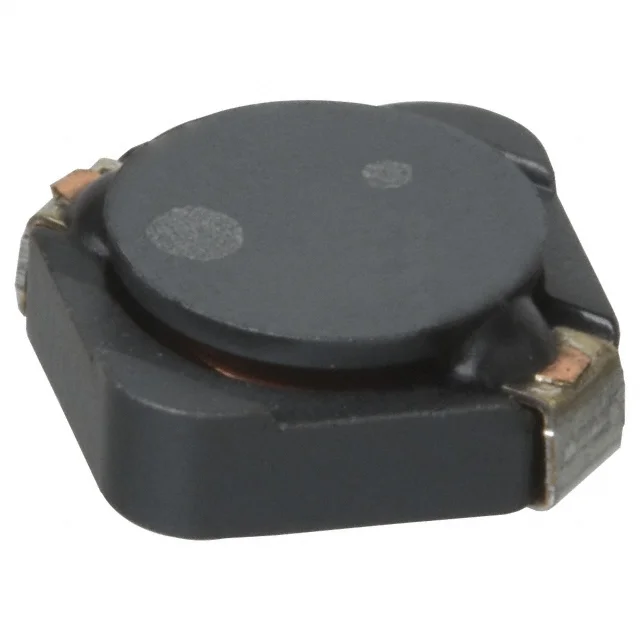

FIXED IND 47UH 800MA 320 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for NP04SB470M.
NP04SB470M has an inductance value of 47 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
NP04SB470M is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
NP04SB470M lists a DC resistance of 320mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
NP04SB470M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from NP04SB470M to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 320mOhm Max |
| Saturation Current | 380mA |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 47UH 800MA 320 MOHM |
| Series | N, P Type |
| Product Status | Obsolete |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 8MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.079" (2.00mm) |
