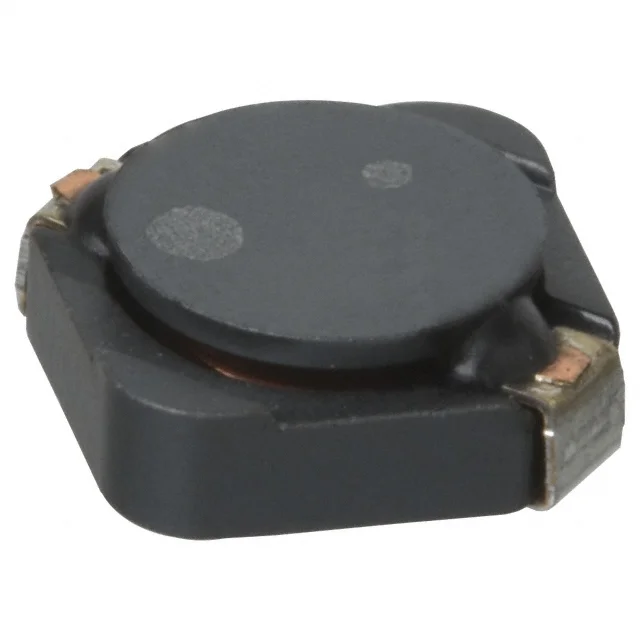

FIXED IND 22UH 770MA 300 MOHM
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 770 mA |
| DC Resistance (DCR) | 300mOhm Max |
| saturationCurrent | 770mA |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Case / Size | Nonstandard |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 22UH 770MA 300 MOHM |
| Series | N, P Type |
| productStatus | Obsolete |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 10MHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
