Description

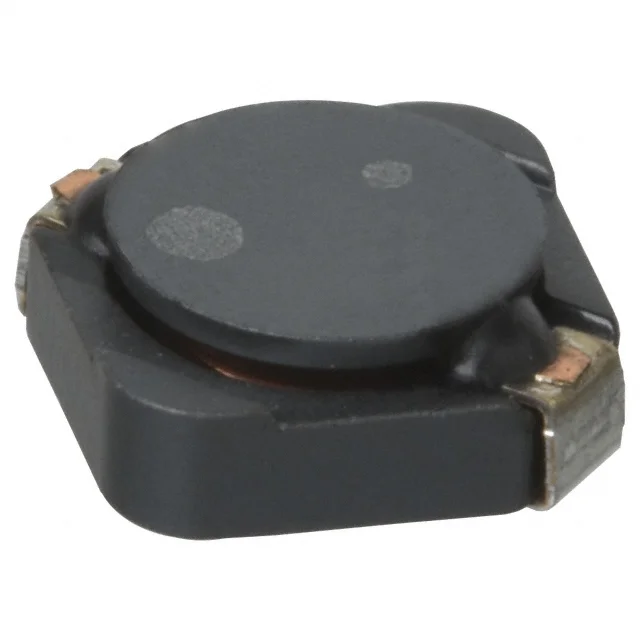

FIXED IND 4.7UH 1.6A 100 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for NP04SZB4R7N.
NP04SZB4R7N has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
NP04SZB4R7N is rated for 1.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
NP04SZB4R7N lists a DC resistance of 100mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
NP04SZB4R7N uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from NP04SZB4R7N to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 100mOhm Max |
| Saturation Current | 1.8A |
| Operating Temperature | -25°C ~ 105°C |
| Dimensions | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 4.7UH 1.6A 100 MOHM |
| Series | N, P Type |
| Product Status | Obsolete |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 27MHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.079" (2.00mm) |
