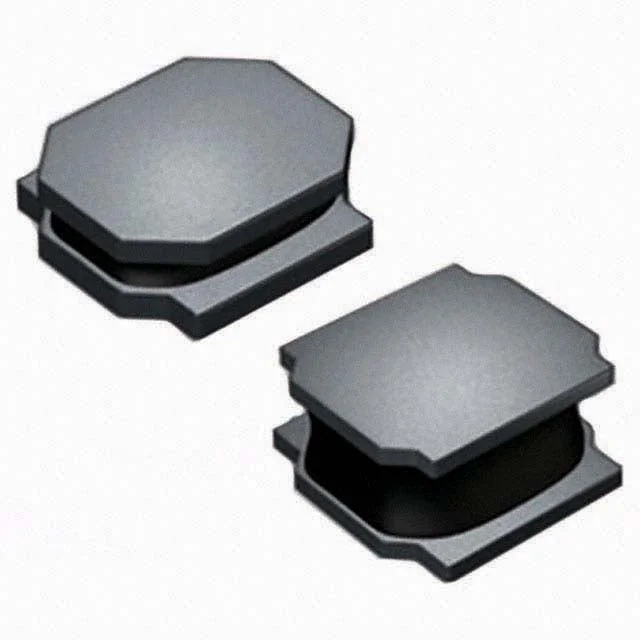

Description
FIXED IND 15UH 640MA 804 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for NRS5012T150MMGF.
NRS5012T150MMGF has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
NRS5012T150MMGF is rated for 640 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
NRS5012T150MMGF lists a DC resistance of 804mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
NRS5012T150MMGF uses a package or case of 2005 (5012 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from NRS5012T150MMGF to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 640 mA |
| DC Resistance (DCR) | 804mOhm Max |
| Saturation Current | 1.2A |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.193" L x 0.193" W (4.90mm x 4.90mm) |
| Case / Size | 2005 (5012 Metric) |
| Package / Case | 2005 (5012 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 15UH 640MA 804 MOHM |
| Series | NR |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Semi-Shielded |
| Self Resonant Frequency | 22MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.047" (1.20mm) |
