Description

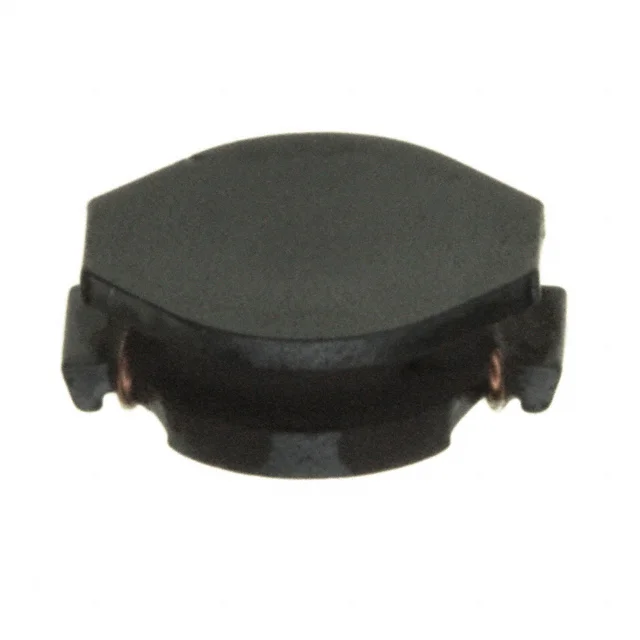

FIXED IND 3.3UH 1.5A 162 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for NRS6010T3R3MMGF.
NRS6010T3R3MMGF has an inductance value of 3.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
NRS6010T3R3MMGF is rated for 1.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
NRS6010T3R3MMGF lists a DC resistance of 162mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
NRS6010T3R3MMGF uses a package or case of 2304 (6010 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from NRS6010T3R3MMGF to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 162mOhm Max |
| Saturation Current | 1.6A |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2304 (6010 Metric) |
| Package / Case | 2304 (6010 Metric) |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 3.3UH 1.5A 162 MOHM |
| Series | NR |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Semi-Shielded |
| Self Resonant Frequency | 42MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
