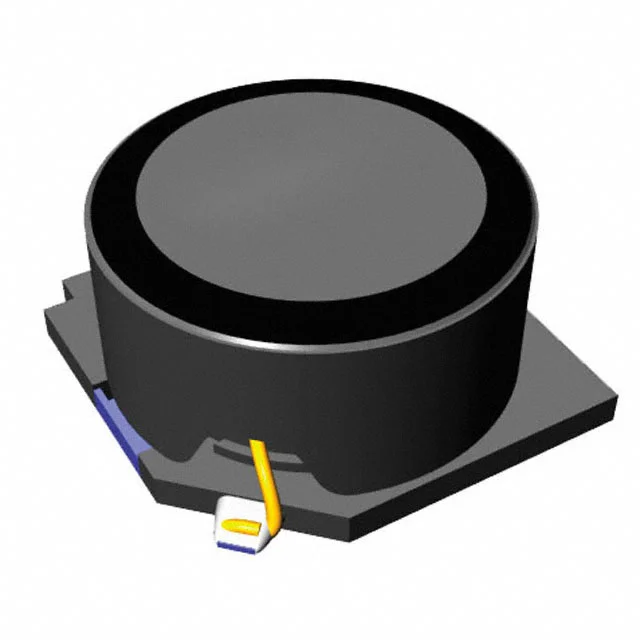

FIXED IND 220UH 780MA 612 MOHM
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 780 mA |
| DC Resistance (DCR) | 612mOhm Max |
| saturationCurrent | 910mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Case / Size | Nonstandard |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 220UH 780MA 612 MOHM |
| Series | NS |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 4.2MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.191" (4.85mm) |
| features | - |
