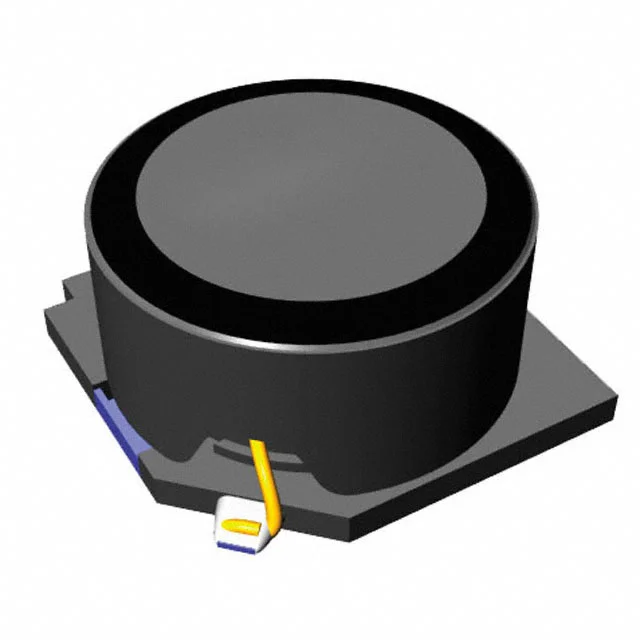

FIXED IND 330UH 640MA 840 MOHM
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 640 mA |
| DC Resistance (DCR) | 840mOhm Max |
| saturationCurrent | 710mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Case / Size | Nonstandard |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 330UH 640MA 840 MOHM |
| Series | NS |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 3.3MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.191" (4.85mm) |
| features | - |
