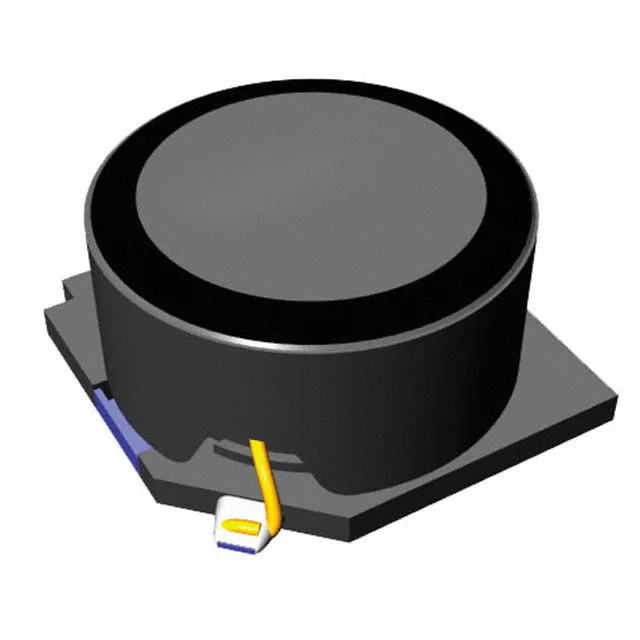

FIXED IND 5.6UH 4.45A 21.8 MOHM
| Inductance | 5.6 µH |
| Tolerance | ±30% |
| Current Rating | 4.45 A |
| DC Resistance (DCR) | 21.8mOhm Max |
| saturationCurrent | 5.85A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Case / Size | Nonstandard |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 5.6UH 4.45A 21.8 MOHM |
| Series | NS |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 26.3MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.191" (4.85mm) |
| features | - |
