Description

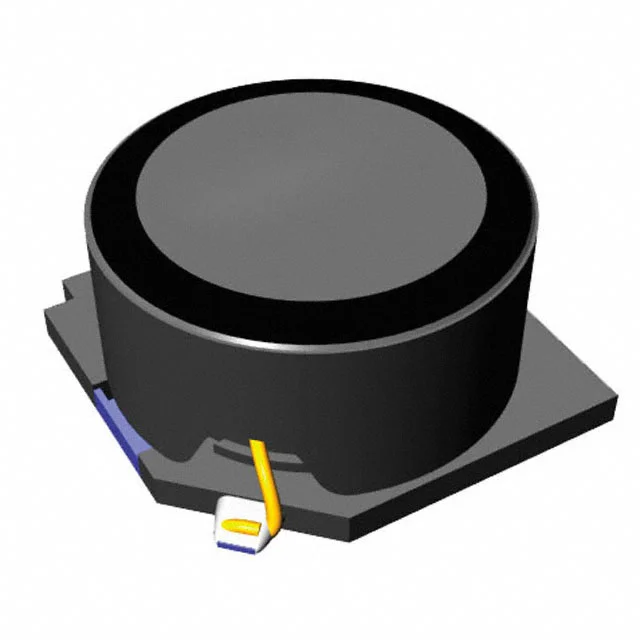

FIXED IND 4.7UH 6.01A 11.2 MOHM
Specifications
Inductance
4.7 µH
Current Rating
6.01 A
DC Resistance (DCR)
11.2mOhm
Dimensions
0.398" L x 0.398" W (10.10mm x 10.10mm)
Product Attributes
Manufacturer Verified
Last verified: 6/17/2026| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating | 6.01 A |
| DC Resistance (DCR) | 11.2mOhm |
| saturationCurrent | 7.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Case / Size | Nonstandard |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 4.7UH 6.01A 11.2 MOHM |
| Series | NS |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.230" (5.85mm) |
| features | - |
