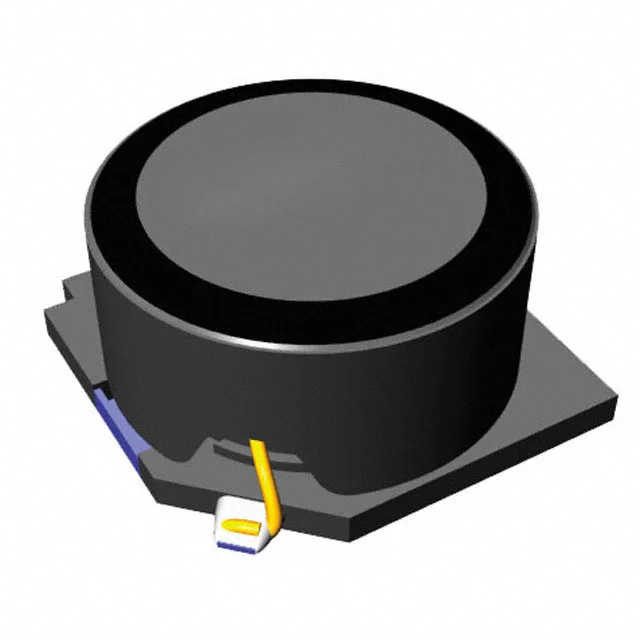

Description
FIXED IND 2.2UH 7.32A 8.9 MOHM
Specifications
Inductance
2.2 µH
Current Rating
7.32 A
DC Resistance (DCR)
8.9mOhm Max
Dimensions
0.398" L x 0.398" W (10.10mm x 10.10mm)
Product Attributes
Manufacturer Verified
Last verified: 6/17/2026| Inductance | 2.2 µH |
| Tolerance | ±30% |
| Current Rating | 7.32 A |
| DC Resistance (DCR) | 8.9mOhm Max |
| saturationCurrent | 10.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Case / Size | Nonstandard |
| Supplier | Taiyo Yuden |
| Description | FIXED IND 2.2UH 7.32A 8.9 MOHM |
| Series | NS |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 63MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.270" (6.85mm) |
| features | - |
