Description

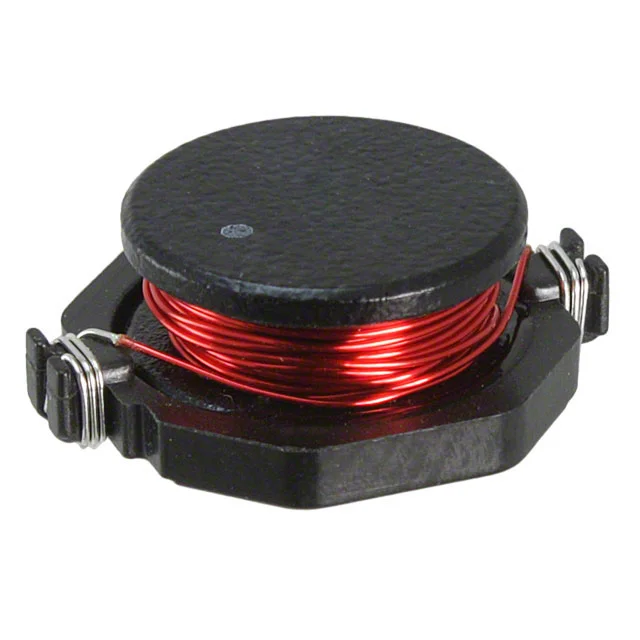

FIXED IND 220UH 1.2A 380 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for P0250.224T.
P0250.224T has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
P0250.224T is rated for 1.2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
P0250.224T lists a DC resistance of 380mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
P0250.224T uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from P0250.224T to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±15% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 380mOhm Max |
| Saturation Current | 2.4A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.733" L x 0.596" W (18.62mm x 15.14mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 220UH 1.2A 380 MOHM |
| Series | P0250NL |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.290" (7.36mm) |
