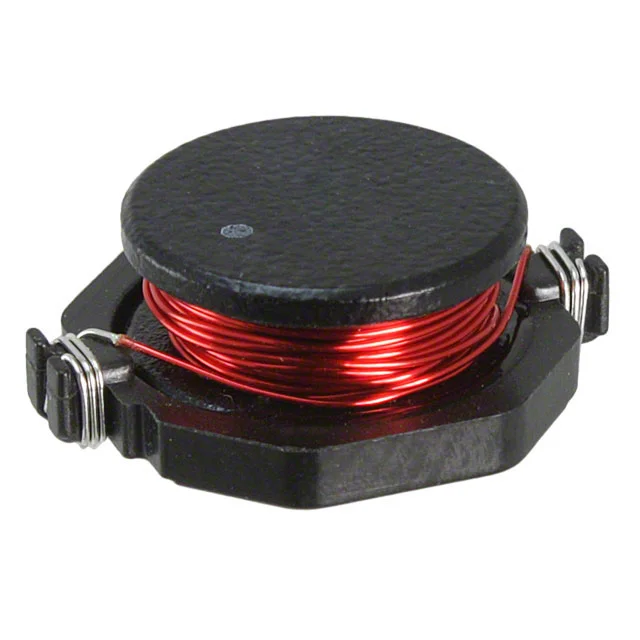

FIXED IND 33UH 3A 66 MOHM SMD
| Inductance | 33 µH |
| Tolerance | ±15% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 66mOhm Max |
| saturationCurrent | 5.5A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.733" L x 0.596" W (18.62mm x 15.14mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 33UH 3A 66 MOHM SMD |
| Series | P0250NL |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.290" (7.36mm) |
| features | - |
