Description

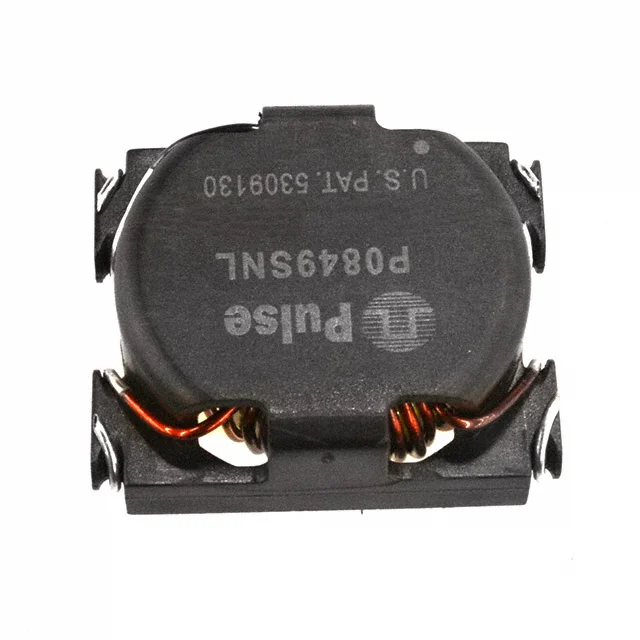

FIXED IND 33UH 5A 19 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for P0849SNLT.
P0849SNLT has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
P0849SNLT is rated for 5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
P0849SNLT lists a DC resistance of 19mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
P0849SNLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from P0849SNLT to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 5 A |
| DC Resistance (DCR) | 19mOhm |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 1.220" L x 1.000" W (30.99mm x 25.40mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 33UH 5A 19 MOHM SMD |
| Series | Bigfoot |
| Product Status | Active |
| Type / Construction | Toroidal |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.500" (12.70mm) |
