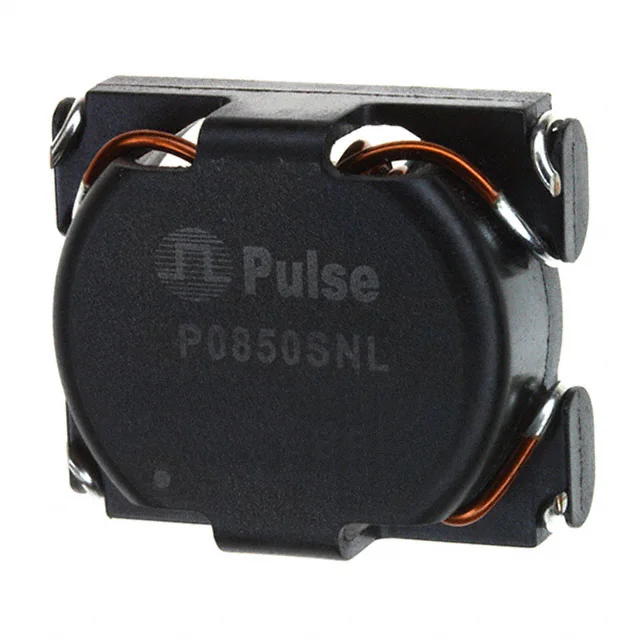

FIXED IND 23UH 5A 13 MOHM SMD
| Inductance | 23 µH |
| Tolerance | ±20% |
| Current Rating | 5 A |
| DC Resistance (DCR) | 13mOhm |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 1.220" L x 1.000" W (30.99mm x 25.40mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 23UH 5A 13 MOHM SMD |
| Series | Bigfoot |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | - |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.500" (12.70mm) |
| features | - |
