Description

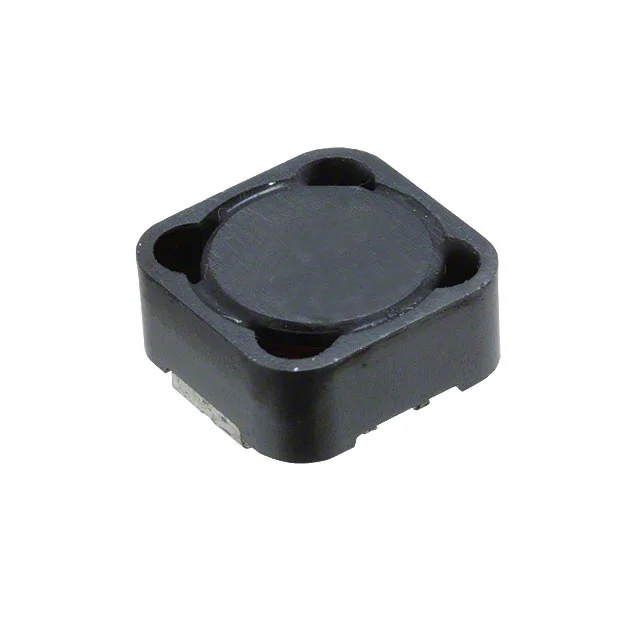

FIXED IND 900NH 13A 2.9 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for P1171.901NLT.
P1171.901NLT has an inductance value of 900 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
P1171.901NLT is rated for 13 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
P1171.901NLT lists a DC resistance of 2.9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
P1171.901NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from P1171.901NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 900 nH |
| Tolerance | ±30% |
| Current Rating | 13 A |
| DC Resistance (DCR) | 2.9mOhm Max |
| Saturation Current | 14A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.482" L x 0.482" W (12.24mm x 12.24mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 900NH 13A 2.9 MOHM SMD |
| Series | P1171NL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 40MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.236" (6.00mm) |
