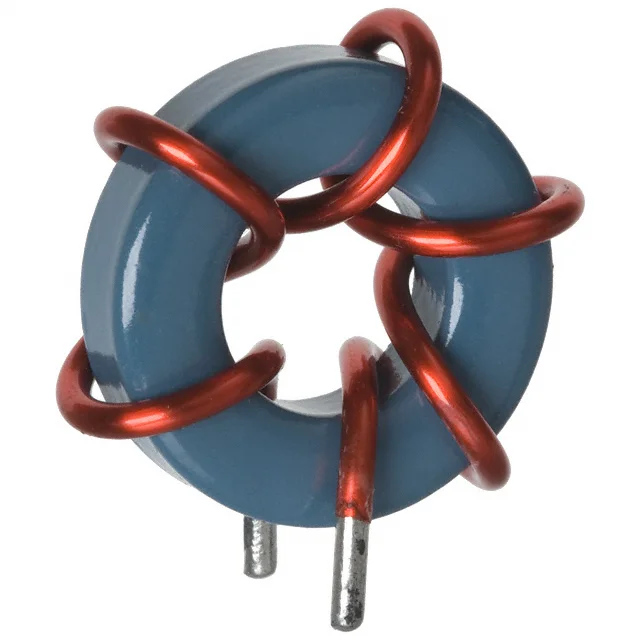

Description
FIXED IND 1.44UH 23.8A 3.8 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for P1967L.
P1967L has an inductance value of 1.44 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
P1967L is rated for 23.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
P1967L lists a DC resistance of 3.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
P1967L uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from P1967L to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.44 µH |
| Tolerance | ±20% |
| Current Rating | 23.8 A |
| DC Resistance (DCR) | 3.8mOhm Max |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.906" Dia x 0.492" W (23.00mm x 12.50mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.44UH 23.8A 3.8 MOHM |
| Series | Bare Coil |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Mounting Type | Through Hole |
