Description

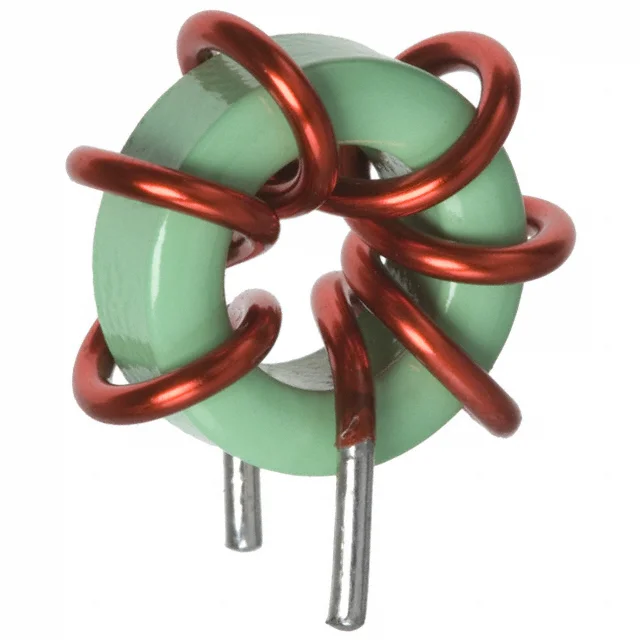

FIXED IND 860NH 22.5A 2.6 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA0235L.
PA0235L has an inductance value of 860 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA0235L is rated for 22.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA0235L lists a DC resistance of 2.6mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA0235L uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA0235L to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 860 nH |
| Current Rating | 22.5 A |
| DC Resistance (DCR) | 2.6mOhm Max |
| Operating Temperature | -40°C ~ 130°C |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 860NH 22.5A 2.6 MOHM |
| Series | Bare Coil |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Mounting Type | Through Hole |
