Description

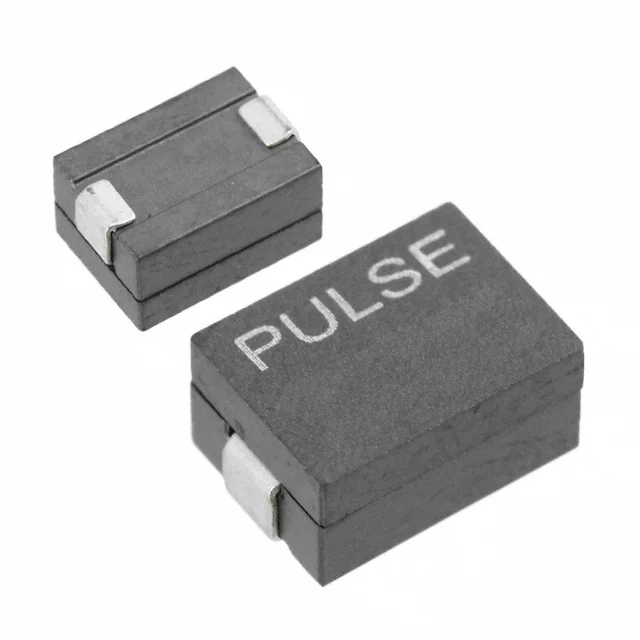

FIXED IND 155NH 31A 0.39 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA0511.151NLT.
PA0511.151NLT has an inductance value of 155 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA0511.151NLT is rated for 31 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA0511.151NLT lists a DC resistance of 0.39mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA0511.151NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA0511.151NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 155 nH |
| Tolerance | ±20% |
| Current Rating | 31 A |
| DC Resistance (DCR) | 0.39mOhm |
| Saturation Current | 40A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.402" L x 0.276" W (10.20mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 155NH 31A 0.39 MOHM |
| Series | PA0511NL |
| Product Status | Active |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.195" (4.96mm) |
