Description

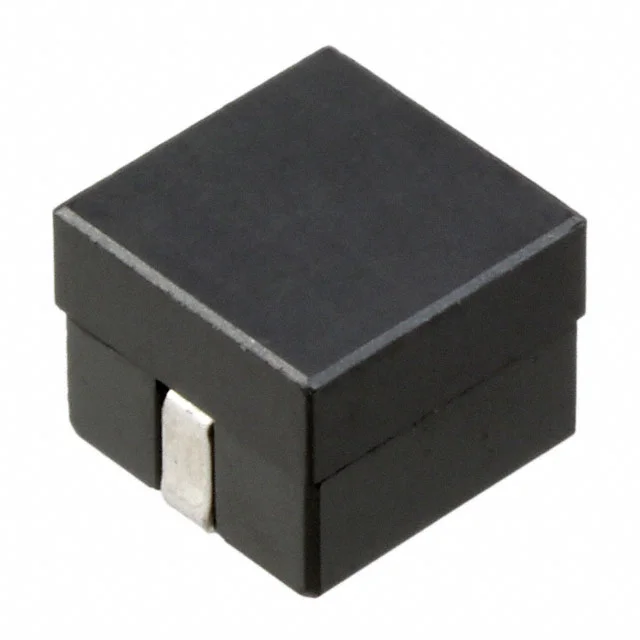

FIXED IND 72NH 31A 0.32 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA0512.700NL.
PA0512.700NL has an inductance value of 72 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA0512.700NL is rated for 31 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA0512.700NL lists a DC resistance of 0.32mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA0512.700NL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA0512.700NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 72 nH |
| Tolerance | ±20% |
| Current Rating | 31 A |
| DC Resistance (DCR) | 0.32mOhm |
| Saturation Current | 58A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 72NH 31A 0.32 MOHM SMD |
| Series | PA0512NL |
| Product Status | Obsolete |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.195" (4.96mm) |
