Description

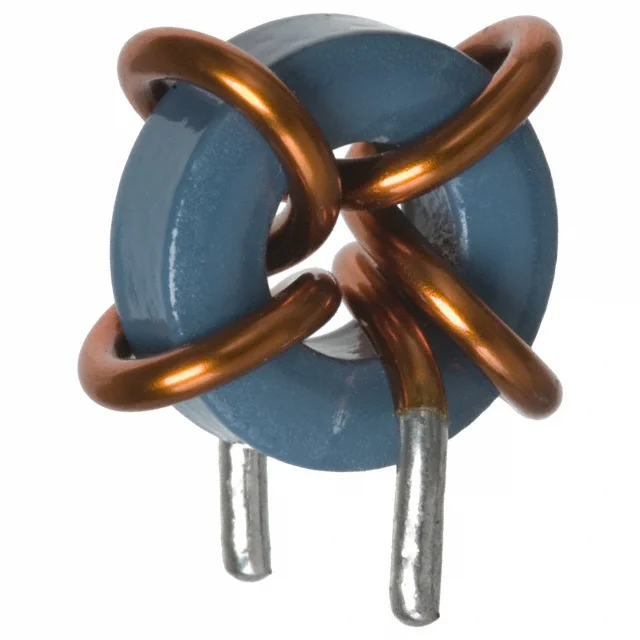

FIXED IND 880NH 22.5A 1.5 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA0690.
PA0690 has an inductance value of 880 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA0690 is rated for 22.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA0690 lists a DC resistance of 1.5mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA0690 uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA0690 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 880 nH |
| Tolerance | ±20% |
| Current Rating | 22.5 A |
| DC Resistance (DCR) | 1.5mOhm Max |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Pulse Electronics |
| Description | FIXED IND 880NH 22.5A 1.5 MOHM |
| Series | Bare Coil |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Shielding | Unshielded |
| Mounting Type | Through Hole |
