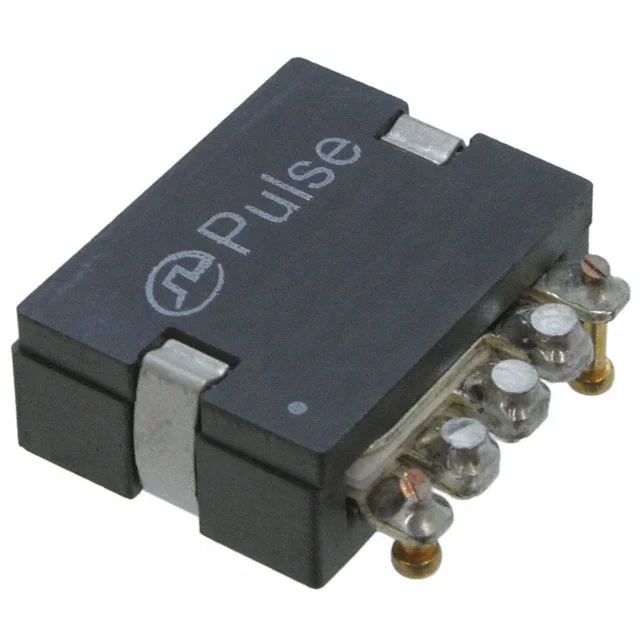

Description
FIXED IND 1.5UH 21A 0.48 MOHM
Specifications
Inductance
1.5 µH
Current Rating
21 A
DC Resistance (DCR)
0.48mOhm Max
Dimensions
0.780" L x 0.770" W (19.81mm x 19.56mm)
Product Attributes
Manufacturer Verified
Last verified: 6/18/2026| Inductance | 1.5 µH |
| Tolerance | ±15% |
| Current Rating | 21 A |
| DC Resistance (DCR) | 0.48mOhm Max |
| saturationCurrent | 24A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.780" L x 0.770" W (19.81mm x 19.56mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.5UH 21A 0.48 MOHM |
| Series | PA1294NL |
| productStatus | Active |
| typeConstruction | Planar |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | - |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.290" (7.37mm) |
| features | - |
