Description

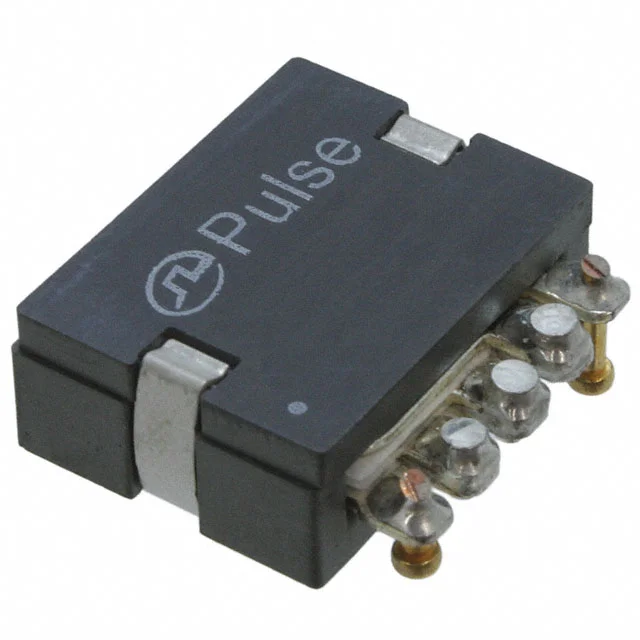

FIXED IND 1UH 42A 1.43 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA1393.102NLT.
PA1393.102NLT has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA1393.102NLT is rated for 42 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA1393.102NLT lists a DC resistance of 1.43mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA1393.102NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA1393.102NLT to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±15% |
| Current Rating | 42 A |
| DC Resistance (DCR) | 1.43mOhm Max |
| Saturation Current | 68A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.780" L x 0.770" W (19.81mm x 19.56mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1UH 42A 1.43 MOHM SMD |
| Series | PA1393NL |
| Product Status | Active |
| Type / Construction | Planar |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.290" (7.37mm) |
