Description

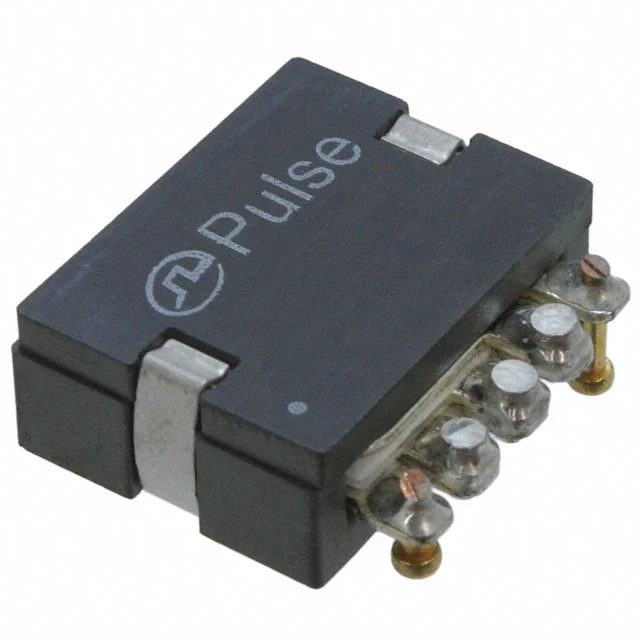

FIXED IND 2.42UH 30A 1.8 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA1494.242NLT.
PA1494.242NLT has an inductance value of 2.42 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA1494.242NLT is rated for 30 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA1494.242NLT lists a DC resistance of 1.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA1494.242NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA1494.242NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.42 µH |
| Tolerance | ±15% |
| Current Rating | 30 A |
| DC Resistance (DCR) | 1.8mOhm Max |
| Saturation Current | 35A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.780" L x 0.770" W (19.81mm x 19.56mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.42UH 30A 1.8 MOHM |
| Series | PA1494NL |
| Product Status | Active |
| Type / Construction | Planar |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.290" (7.37mm) |
