Description

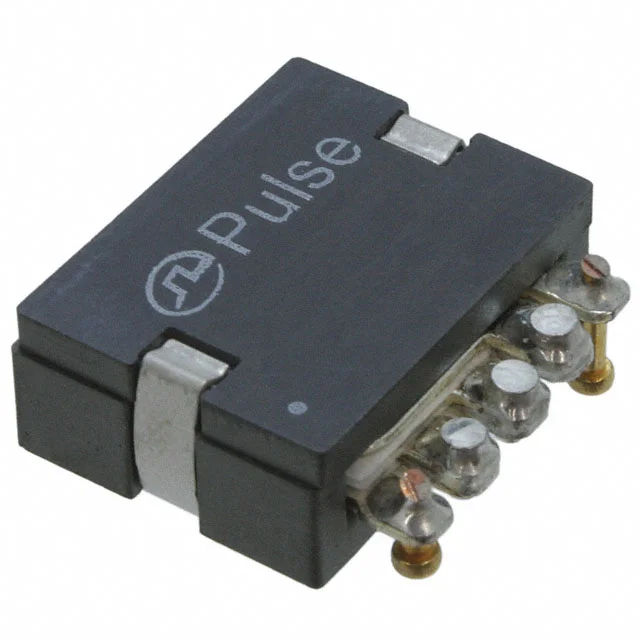

FIXED IND 4.4UH 14A 1.8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA1494.442NLT.
PA1494.442NLT has an inductance value of 4.4 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA1494.442NLT is rated for 14 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA1494.442NLT lists a DC resistance of 1.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA1494.442NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA1494.442NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.4 µH |
| Tolerance | ±15% |
| Current Rating | 14 A |
| DC Resistance (DCR) | 1.8mOhm Max |
| Saturation Current | 16A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.780" L x 0.770" W (19.81mm x 19.56mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 4.4UH 14A 1.8 MOHM SMD |
| Series | PA1494NL |
| Product Status | Active |
| Type / Construction | Planar |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.290" (7.37mm) |
