Description

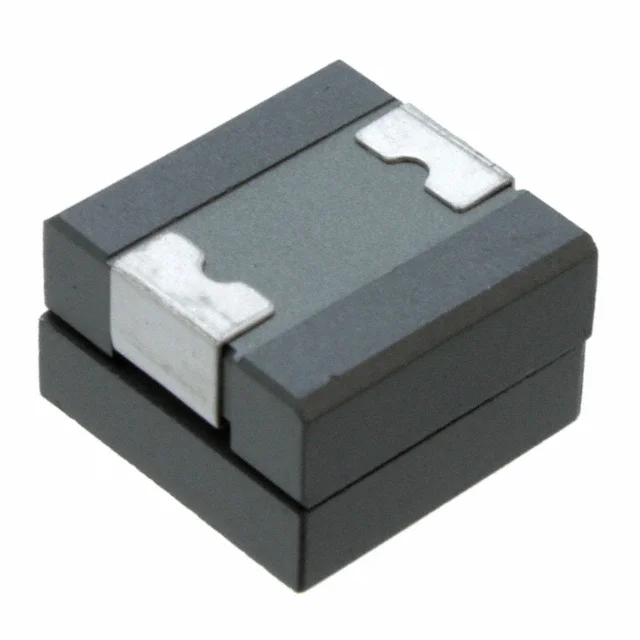

FIXED IND 440NH 30A 0.53 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA1513.441NLT.
PA1513.441NLT has an inductance value of 440 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA1513.441NLT is rated for 30 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA1513.441NLT lists a DC resistance of 0.53mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA1513.441NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA1513.441NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 440 nH |
| Tolerance | ±20% |
| Current Rating | 30 A |
| DC Resistance (DCR) | 0.53mOhm |
| Saturation Current | 35A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.530" L x 0.510" W (13.46mm x 12.95mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 440NH 30A 0.53 MOHM |
| Series | PA1513NL |
| Product Status | Active |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.315" (8.00mm) |
