Description

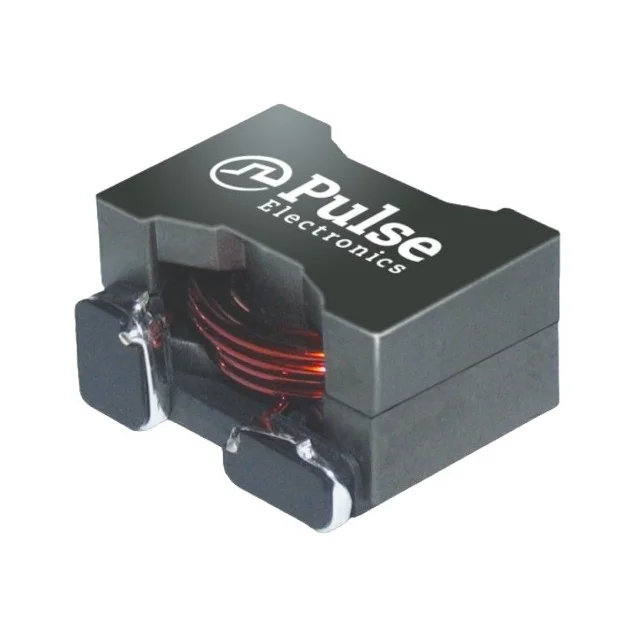

FIXED IND 27UH 7.8A 14.9 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA2050.273NL.
PA2050.273NL has an inductance value of 27 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA2050.273NL is rated for 7.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA2050.273NL lists a DC resistance of 14.9mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA2050.273NL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA2050.273NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 27 µH |
| Tolerance | ±10% |
| Current Rating | 7.8 A |
| DC Resistance (DCR) | 14.9mOhm |
| Saturation Current | 9A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.875" L x 0.750" W (22.23mm x 19.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 27UH 7.8A 14.9 MOHM |
| Series | PA2050NL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.480" (12.20mm) |
