Description

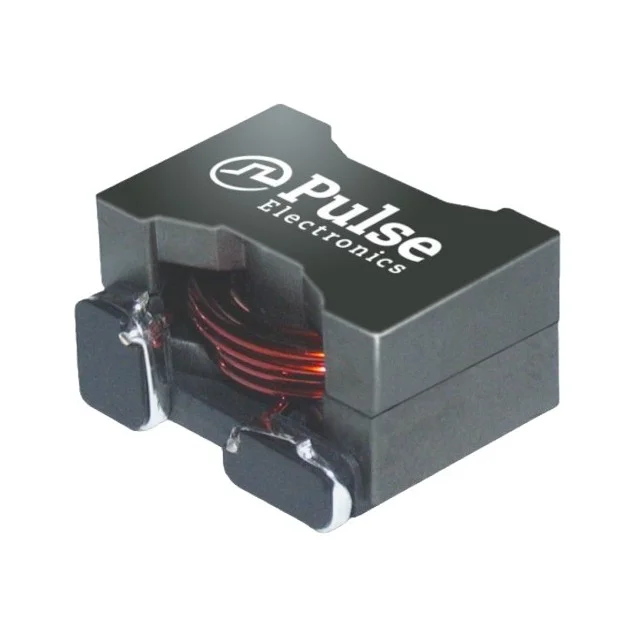

FIXED IND 36UH 6A 21.6 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA2050.363NL.
PA2050.363NL has an inductance value of 36 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA2050.363NL is rated for 6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA2050.363NL lists a DC resistance of 21.6mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA2050.363NL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA2050.363NL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 36 µH |
| Tolerance | ±10% |
| Current Rating | 6 A |
| DC Resistance (DCR) | 21.6mOhm |
| Saturation Current | 8A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.875" L x 0.750" W (22.23mm x 19.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 36UH 6A 21.6 MOHM SMD |
| Series | PA2050NL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.480" (12.20mm) |
