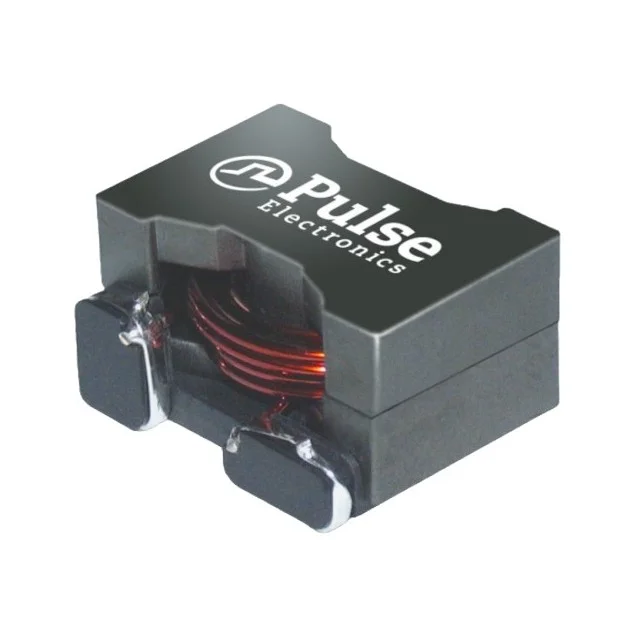

Description
FIXED IND 5.8UH 14.4A 4.4 MOHM
Specifications
Inductance
5.8 µH
Current Rating
14.4 A
DC Resistance (DCR)
4.4mOhm
Dimensions
0.875" L x 0.750" W (22.23mm x 19.05mm)
Product Attributes
Manufacturer Verified
Last verified: 6/18/2026| Inductance | 5.8 µH |
| Tolerance | ±10% |
| Current Rating | 14.4 A |
| DC Resistance (DCR) | 4.4mOhm |
| saturationCurrent | 22A |
| Operating Temperature | -40°C ~ 130°C |
| Dimensions | 0.875" L x 0.750" W (22.23mm x 19.05mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 5.8UH 14.4A 4.4 MOHM |
| Series | PA2050NL |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | - |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.480" (12.20mm) |
| features | - |
