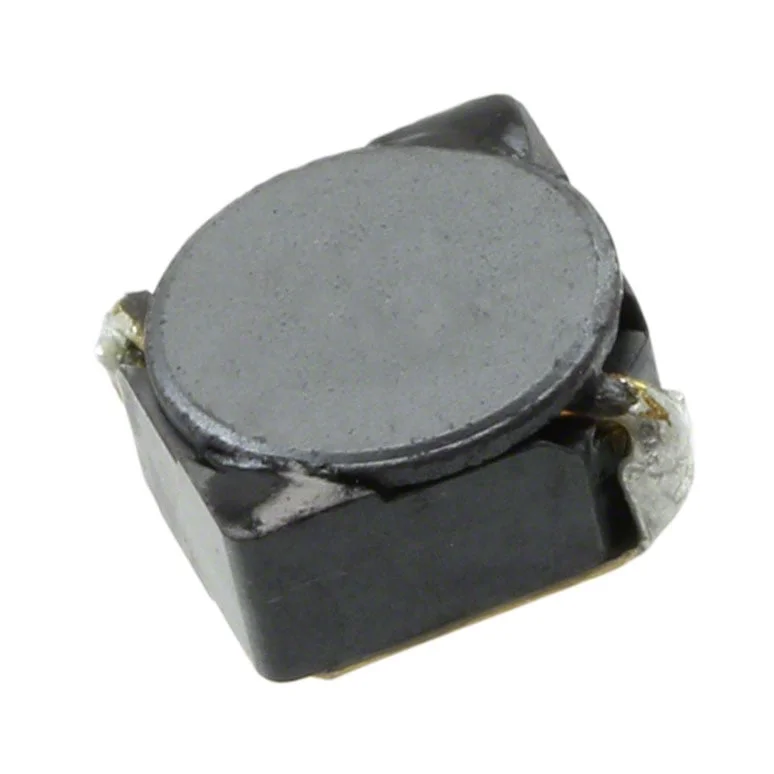

FIXED IND 82UH 460MA 416 MOHM
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating | 460 mA |
| DC Resistance (DCR) | 416mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.240" L x 0.240" W (6.10mm x 6.10mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 82UH 460MA 416 MOHM |
| Series | PA4300.XXXNLT |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
