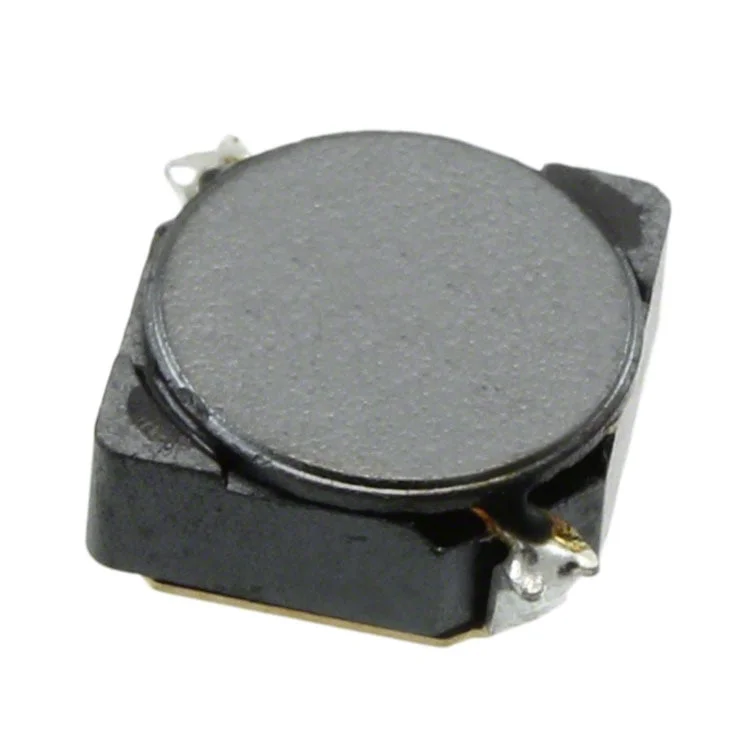

Description
FIXED IND 2.7UH 2.84A 27.3 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4301.272NLT.
PA4301.272NLT has an inductance value of 2.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4301.272NLT is rated for 2.84 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4301.272NLT lists a DC resistance of 27.3mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4301.272NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4301.272NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.7 µH |
| Tolerance | ±30% |
| Current Rating | 2.84 A |
| DC Resistance (DCR) | 27.3mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.283" L x 0.283" W (7.20mm x 7.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 2.7UH 2.84A 27.3 MOHM |
| Series | PA4301.XXXNLT |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
