Description

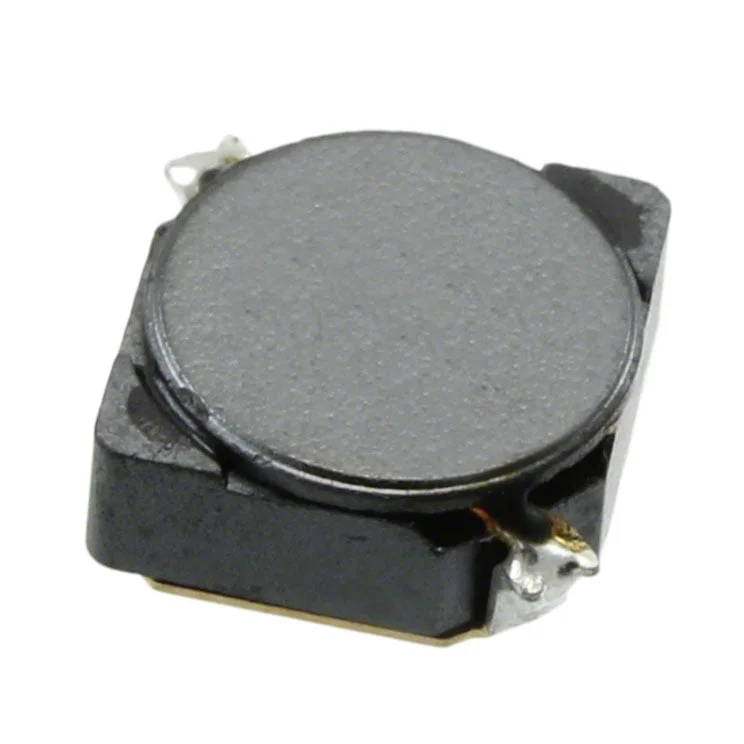

FIXED IND 560UH 220MA 2.99 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4301.564NLT.
PA4301.564NLT has an inductance value of 560 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4301.564NLT is rated for 220 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4301.564NLT lists a DC resistance of 2.99Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4301.564NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4301.564NLT to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 560 µH |
| Tolerance | ±20% |
| Current Rating | 220 mA |
| DC Resistance (DCR) | 2.99Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.283" L x 0.283" W (7.20mm x 7.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 560UH 220MA 2.99 OHM |
| Series | PA4301.XXXNLT |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
