Description

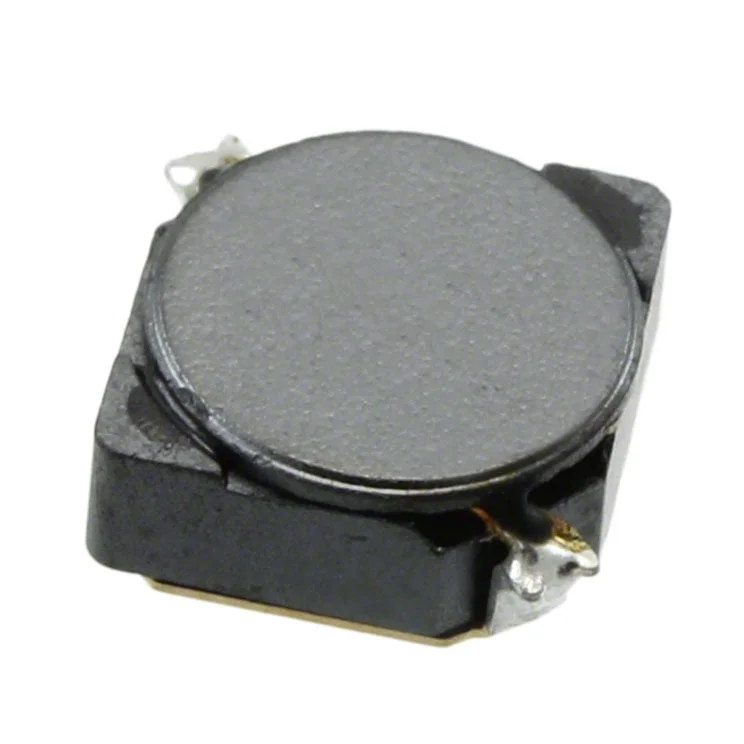

FIXED IND 68UH 607MA 364 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4301.683NLT.
PA4301.683NLT has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4301.683NLT is rated for 607 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4301.683NLT lists a DC resistance of 364mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4301.683NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4301.683NLT to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 607 mA |
| DC Resistance (DCR) | 364mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.283" L x 0.283" W (7.20mm x 7.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 68UH 607MA 364 MOHM |
| Series | PA4301.XXXNLT |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
