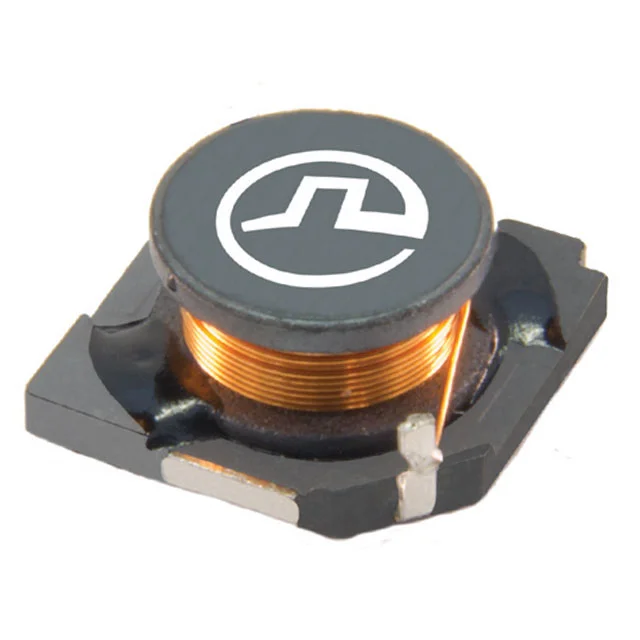

FIXED IND 1.5UH 5.5A 45 MOHM SMD
| Inductance | 1.5 µH |
| Tolerance | ±30% |
| Current Rating | 5.5 A |
| DC Resistance (DCR) | 45mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Case / Size | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1.5UH 5.5A 45 MOHM SMD |
| Series | PA4305.XXXNL |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.126" (3.20mm) |
| features | - |
