Description

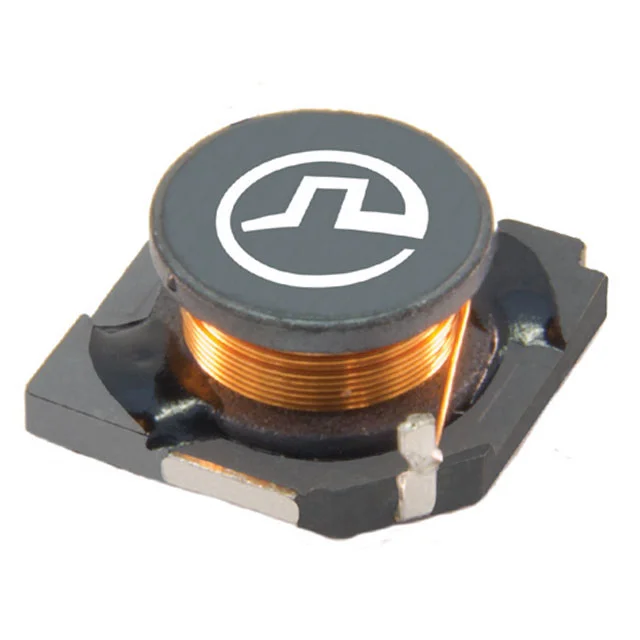

FIXED IND 15UH 1.68A 225 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4305.153NLT.
PA4305.153NLT has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4305.153NLT is rated for 1.68 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4305.153NLT lists a DC resistance of 225mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4305.153NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4305.153NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 1.68 A |
| DC Resistance (DCR) | 225mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 15UH 1.68A 225 MOHM |
| Series | PA4305.XXXNL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
