Description

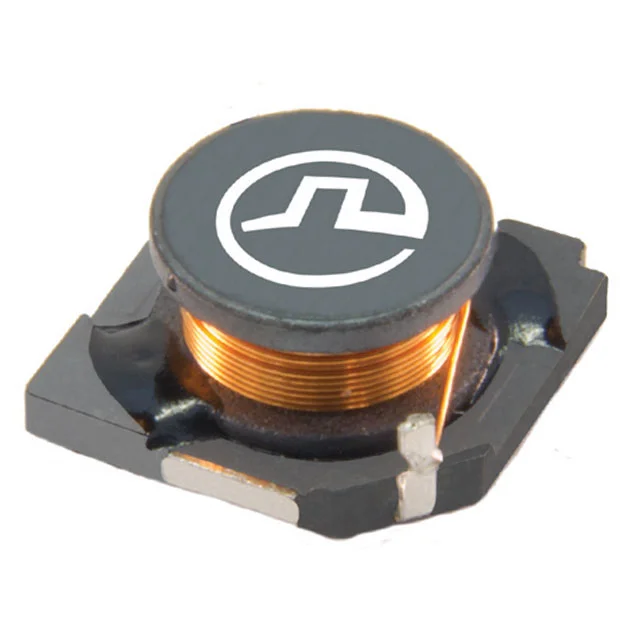

FIXED IND 330UH 350MA 4.344 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4305.334NLT.
PA4305.334NLT has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4305.334NLT is rated for 350 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4305.334NLT lists a DC resistance of 4.344Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4305.334NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4305.334NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 350 mA |
| DC Resistance (DCR) | 4.344Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 330UH 350MA 4.344 OHM |
| Series | PA4305.XXXNL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
