Description

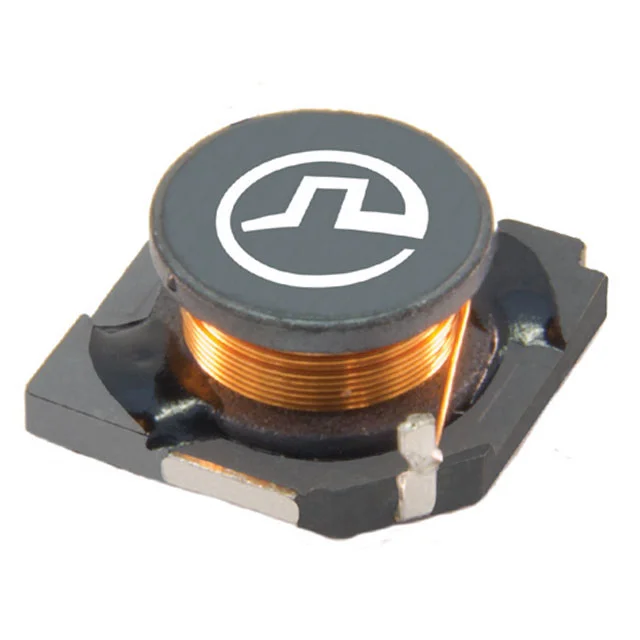

FIXED IND 470UH 300MA 6.341 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4305.474NLT.
PA4305.474NLT has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4305.474NLT is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4305.474NLT lists a DC resistance of 6.341Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4305.474NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4305.474NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 6.341Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 470UH 300MA 6.341 OHM |
| Series | PA4305.XXXNL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
