Description

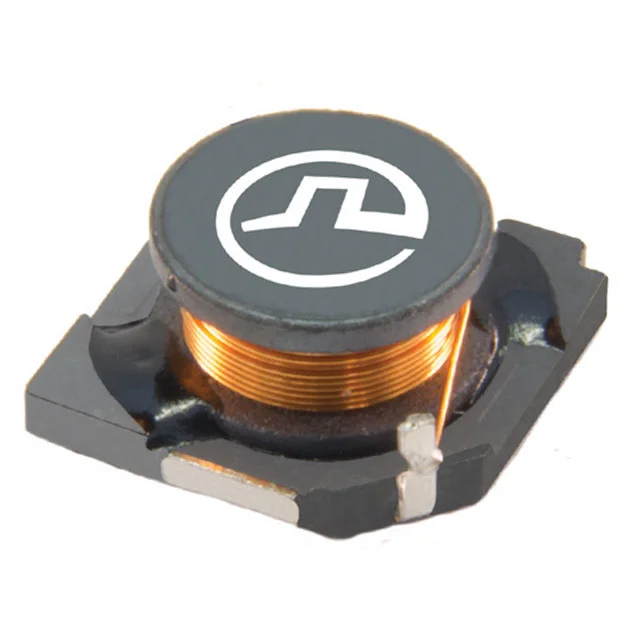

FIXED IND 68UH 800MA 950 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4305.683NLT.
PA4305.683NLT has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4305.683NLT is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4305.683NLT lists a DC resistance of 950mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4305.683NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4305.683NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 950mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.248" L x 0.248" W (6.30mm x 6.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 68UH 800MA 950 MOHM |
| Series | PA4305.XXXNL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.126" (3.20mm) |
