Description

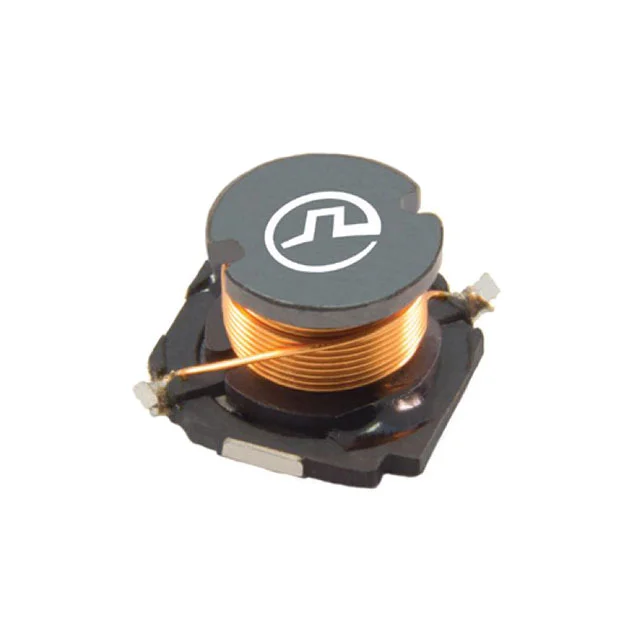

FIXED IND 330UH 700MA 3.888 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4308.334NLT.
PA4308.334NLT has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4308.334NLT is rated for 700 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4308.334NLT lists a DC resistance of 3.888Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4308.334NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4308.334NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 3.888Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 330UH 700MA 3.888 OHM |
| Series | PA4308.XXXNL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.189" (4.80mm) |
