Description

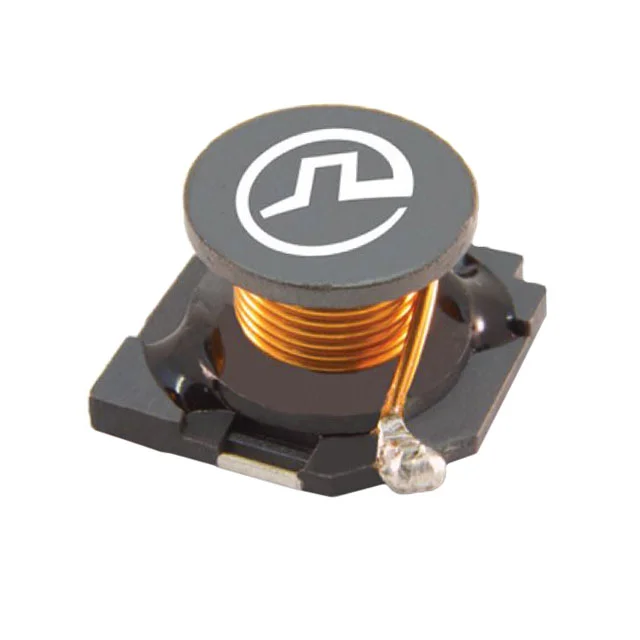

FIXED IND 6.8UH 14A 32 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4310.682NLT.
PA4310.682NLT has an inductance value of 6.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4310.682NLT is rated for 14 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4310.682NLT lists a DC resistance of 32mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4310.682NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4310.682NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating | 14 A |
| DC Resistance (DCR) | 32mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 6.8UH 14A 32 MOHM SMD |
| Series | PA4310.XXXNL |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.315" (8.00mm) |
