Description

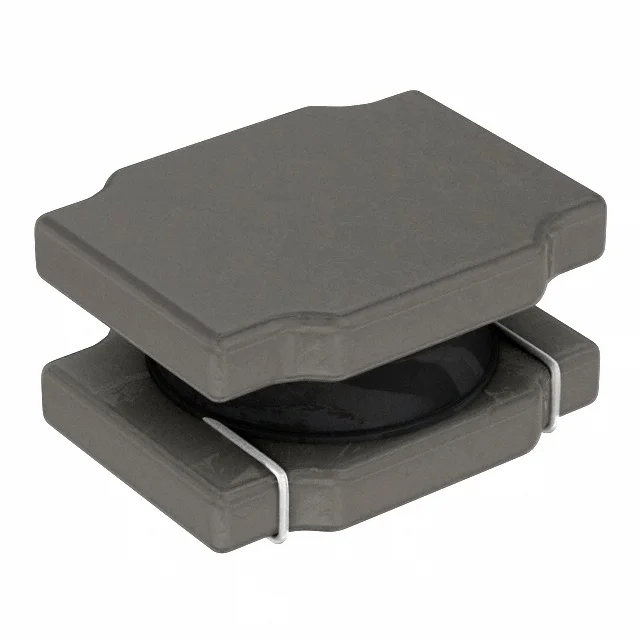

FIXED IND 1UH 2.35A 90 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4330.102NLT.
PA4330.102NLT has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4330.102NLT is rated for 2.35 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4330.102NLT lists a DC resistance of 90mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4330.102NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4330.102NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 2.35 A |
| DC Resistance (DCR) | 90mOhm Max |
| Saturation Current | 3.35A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.087" L x 0.071" W (2.20mm x 1.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 1UH 2.35A 90 MOHM SMD |
| Series | PA4330.XXXNLT |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 70MHz |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
