Description

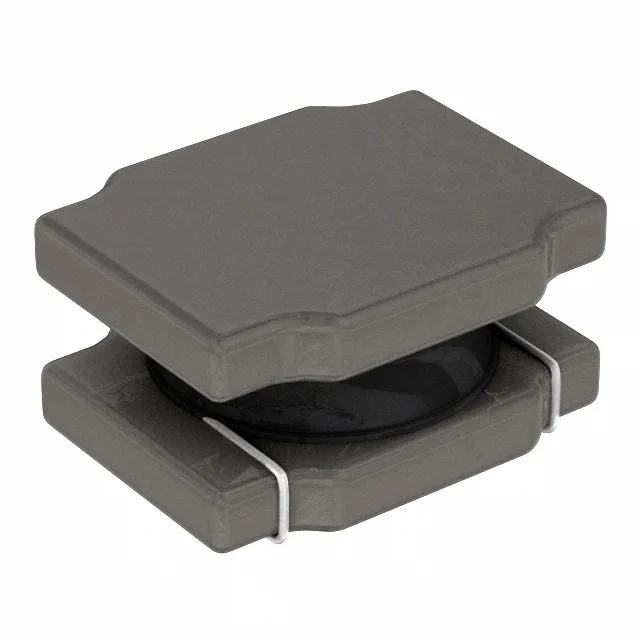

FIXED IND 470NH 3.1A 49 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for PA4330.471NLT.
PA4330.471NLT has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
PA4330.471NLT is rated for 3.1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
PA4330.471NLT lists a DC resistance of 49mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
PA4330.471NLT uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from PA4330.471NLT to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 3.1 A |
| DC Resistance (DCR) | 49mOhm Max |
| Saturation Current | 3.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.087" L x 0.071" W (2.20mm x 1.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Pulse Electronics |
| Description | FIXED IND 470NH 3.1A 49 MOHM SMD |
| Series | PA4330.XXXNLT |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 102MHz |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
